GitHub Actions¶

In this tutorial, we'll create a project using GitHub Actions as the automation system and deploybot to manage deploys.

When code is pushed to GitHub in a Pull Request or merged, GitHub Actions will run a build/test workflow to run unit tests and build a Go binary. Then we'll use deploybot to trigger a GitHub Actions deploy workflow, step through deploy environments, or auto-deploy after tests pass on a branch.

Requirements¶

GitHub Actions enabled for a repository or organization
Deploybot installed on the repository or organization

Login to Github. Navigate to your organization's settings, find GitHub Actions settings, and enable GitHub actions and workflows for one or more repositories.

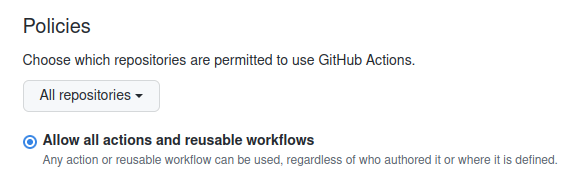

Enable GitHub Actions

Alternately, configure a specific personal or organization's repository to allow GitHub Actions.

GitHub¶

Create a GitHub repository for your project. You may wish to git clone or download deploybot-app/github-actions-example to get started.

git clone git@github.com:deploybot-app/github-actions-example.git

A project may be anything you wish to deploy in some way. If you need some starter code, the example shows a tiny Go program and test.

Tip

Be sure the repository or organization enables GitHub Actions.

Build / Test¶

Project build or test workflows run language-specific unit tests, build binaries or container images, publish artifacts, upload packages, or push container images to a registry. GitHub Actions triggers these workflows in response to events like pushing code or updating a pull.

Info

If your project already defines build or test workflows under .github/workflows/, skip this section.

Create a new workflow for running a build or test. If you're using the example repo, we just run some Go tests.

```yaml

.github/workflows/test.yaml¶

name: test on: push: branches: - main pull_request: jobs: build: name: go runs-on: ubuntu-latest strategy: fail-fast: false matrix: go: ['1.17', '1.18'] steps: - name: setup uses: actions/setup-go@v3 with: go-version: ${{matrix.go}}

  - name: checkout
    uses: actions/checkout@v3

  - name: test
    run: go test .

```

Deployment¶

A deployment is a process for rolling out a change to a target environment. A deploy might update a binary, apply Kubernetes manifests, sync files to a CDN, upload a package, tag a release, ring a bell, or anything you can define in a GitHub Actions workflow.

Create a new workflow for performing a deployment. If you're using the example repo, we just print a message.

```yaml

.github/workflows/deploy.yaml¶

name: deploy on: deployment permissions: contents: read deployments: write jobs: deploy: name: deploy runs-on: ubuntu-latest env: SHA: ${{ github.event.deployment.sha }} ENVIRONMENT: ${{ github.event.deployment.environment }} DEPLOY_ID: ${{ github.event.deployment.id}} steps: - name: In-progress Status uses: chrnorm/deployment-status@v2 with: token: '$ ' state: 'in_progress' deployment-id: ${{env.DEPLOY_ID}}}

  - name: "Checkout"
    uses: "actions/checkout@v3"

  - name: "Deploy ${{env.ENVIRONMENT}}"
    run: |
      echo "Deploying ${SHA} to ${ENVIRONMENT} environment"
      # Perform deploy (whatever that means to you) here

  - name: Success Status
    if: success()
    uses: chrnorm/deployment-status@v2
    with:
      token: '${{ github.token }}'
      state: 'success'
      deployment-id: ${{env.DEPLOY_ID}}

  - name: Failure Status
    if: failure()
    uses: chrnorm/deployment-status@v2
    with:
      token: '${{ github.token }}'
      state: 'failure'
      deployment-id: ${{env.DEPLOY_ID}}

```

Let's look at the example in detail. The deploy workflow will be triggered when a GitHub Deployment is created.

yaml on: deployment ...

Since the workflow needs to be able to update the GitHub Deployment status, assign explicit permissions to the GITHUB_TOKEN.

yaml ... permissions: contents: read deployments: write ...

Before the deploy work begins, set the GitHub Deployment status to in_progess.

yaml ... jobs: deploy: name: deploy steps: - name: In-progress Status uses: chrnorm/deployment-status@v2 with: token: '${{ github.token }}' state: 'in_progress' deployment-id: ${{env.DEPLOY_ID}} ...

Perform the work of checking out a commit and deploying to the given environment. GitHub Actions support many context variables that can be used in your deploy workflow. A few that are especially relevant to deployment events are shown:

${{ github.event.deployment.sha }}
${{ github.event.deployment.environment }}
${{ github.event.deployment.id }}
${{ github.event.deployment.ref }}
${{ github.event.deployment.task }}
${{ github.event.deployment.payload }}
${{ github.event.deployment.description }}

```yaml ... jobs: deploy: name: deploy runs-on: ubuntu-latest env: SHA: ${{ github.event.deployment.sha }} ENVIRONMENT: ${{ github.event.deployment.environment }} DEPLOY_ID: ${{ github.event.deployment.id}} steps: ...

  - name: "Checkout"
    uses: "actions/checkout@v3"

  - name: "Deploy ${{env.ENVIRONMENT}}"
    run: |
      echo "Deploying ${SHA} to ${ENVIRONMENT} environment"
      # Perform deploy (whatever that means to you) here
      ...
  ...

```

After the deploy work finishes (or exits), ensure the GitHub Deployment status is marked success or failure.

```yaml ... jobs: deploy: name: deploy steps: ... - name: Success Status if: success() uses: chrnorm/deployment-status@v2 with: token: '${{ github.token }}' state: 'success' deployment-id: ${{env.DEPLOY_ID}}

  - name: Failure Status
    if: failure()
    uses: chrnorm/deployment-status@v2
    with:
      token: '${{ github.token }}'
      state: 'failure'
      deployment-id: ${{env.DEPLOY_ID}}

```

Deploybot¶

Add a deploybot configuration file to your project at .github/deploybot.yaml on the default branch. Define the GitHub Environments that should be deployable (up to 4).

```yaml

.github/deploybot.yaml¶

deployments: - name: development - name: staging - name: production ```

Login to deploybot. Find your project among your personal repos or organization repos.

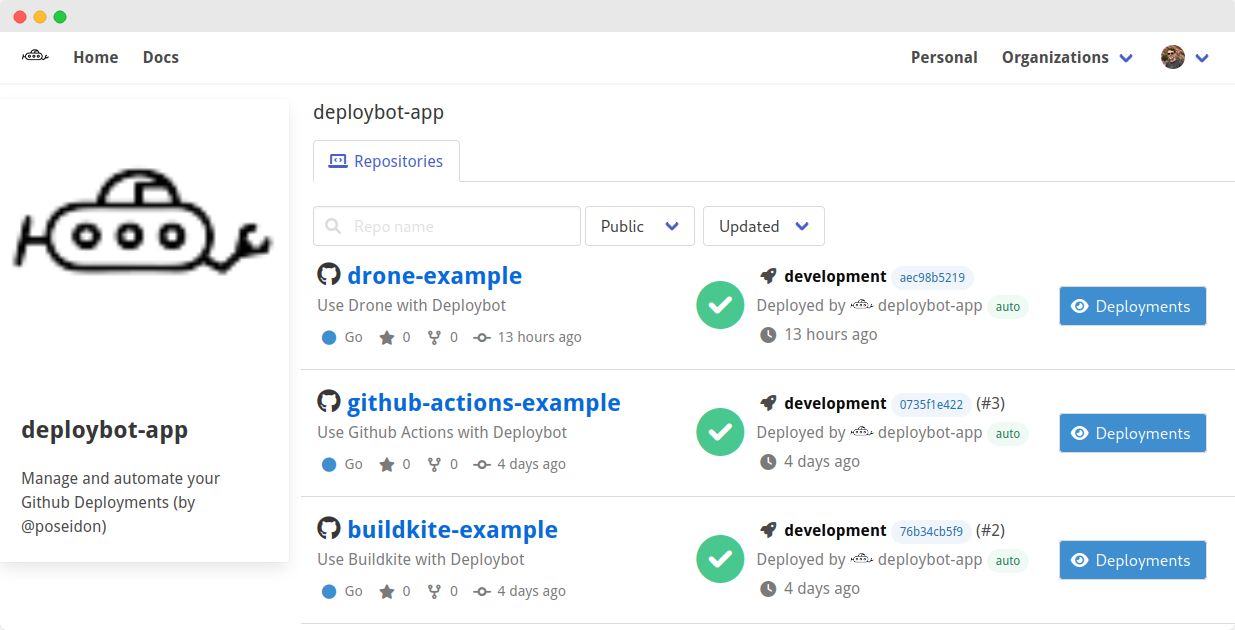

Deploybot User or Org Repos

Manual Deploys¶

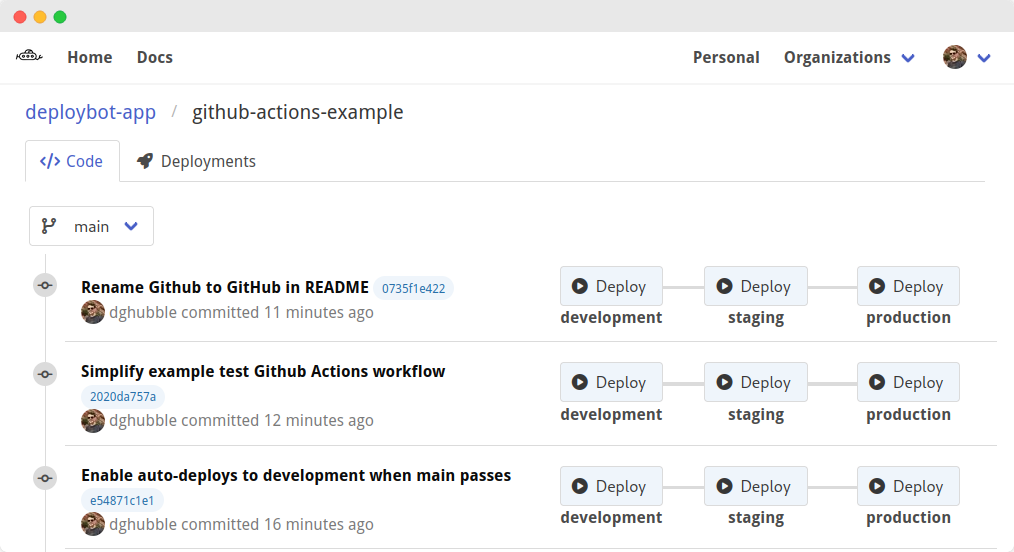

The commits timeline shows recent commits on the default or feature branches, while the deploy steps show deployable GitHub Environments.

Manual Deploys

Use the Deploy buttons to create a GitHub Deployment of a commit to an environment. Each GitHub Deployment notifies GitHub that a deploy should be performed and triggers your GitHub Actions deploy workflow.

Automated Deploys¶

Deploybot can be configured to deploy to environments automatically.

For example, set on_push: true to create a GitHub Deployment when a commit is pushed to the default branch, after it passes tests.

```yaml

.github/deploybot.yaml¶

deployments: - name: development on_push: true

name: production # still manual ```

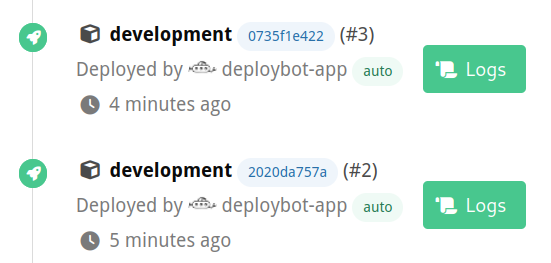

Auto-deploys by Deploybot

Note

More advanced configuration settings are planned.

History¶

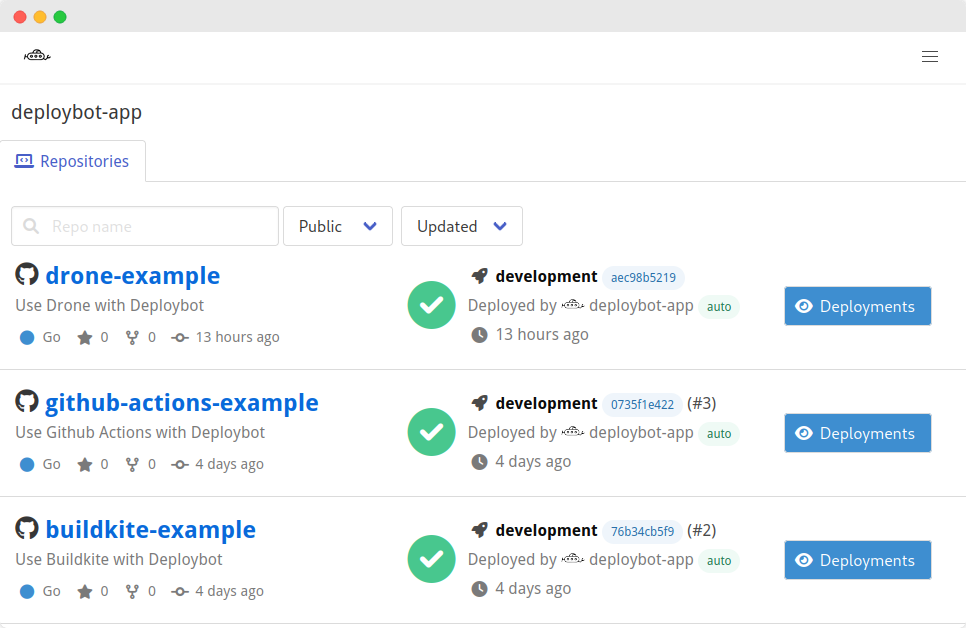

View recent deployment history across an organization or for an individual repository.

Organizaiton overview
